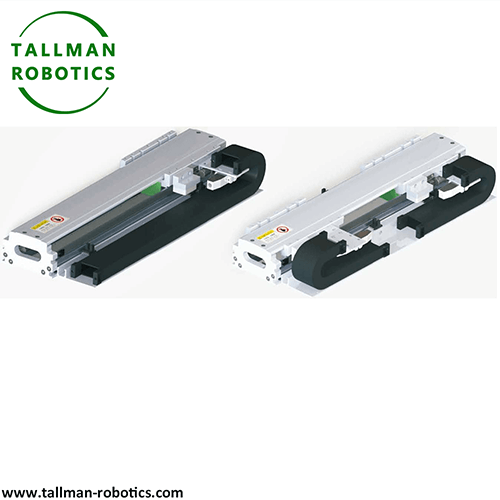

Linear Kuran Motɛri Actuator

Kɔrɔɲɔgɔnma

Baarakɛcogo

Configuration (labɛncogo) min bɛ Kɛ cogoya la

Motɛri statɛri liniyali

A bɛ kuran-magnetiki-yɔrɔ lawuli

Magnet permanent array (ni nɛgɛ kɔnɔna bɛ a la) walima winding track (ni nɛgɛ kɔnɔna tɛ a la) .

Rotor moteur lineaire ye

Bɔli sinsinni wulicogo

Ni yɔrɔ lamagannenw ye bobinew fana sen bɛ o la (u bɛ tali kɛ doni la k’a ɲɛsin doni ma) .

Gafe min bɛ ɲɛfɔli kɛ kosɛbɛ

Doni-dadonni

Fiɲɛbɔlanw (nanomɛtiri hakɛ), bololanɛgɛw (industrie grade) .

Jɛkulu ka jaabiw dicogo

Waati yɛrɛyɛrɛ datugulen-loop control

Grating ruler (± 0,1 μ m) ani magnétique grating ruler (± 1 μ m) .

Sistɛmu min bɛ kɛ ka nɛnɛ

Nɛnɛko ɲɛnabɔli

Nɛnɛ nafama (<500W), Water Cooling (High Power)

Kontrɔlikɛla

Kontrɔla ka lamaga

Servo drive kɛrɛnkɛrɛnnen (a bɛ EtherCAT/CANopen dɛmɛ

Minɛn suguya

Core bolicogo cogoya

Yɛlɛmacogo minnu bɛ sɔrɔ

Aplikasi kɛcogo minnu bɛ kɛ cogoya la

Linear Kuran Motɛri Actuator

Direct Drive ka Moteur Lineaire

No Mecanique Transmission, Sortie Directe de Mouvement Lineaire

Positioning haute précision (i n’a fɔ Semiconductor Equipment) .

Actuateur électrique lineaire (Kuranko ɲɛnabɔbaga).

Moteur rotatif+Transmission mécanique (Vis, etc.) Bamako, Mali.

Lamaga Yɛlɛma → Lamaga-lamagali sinsinni

Otomatiki Industrielle Générale (i n’a fɔ Valve Control) .

Moteur Lineaire (Motɛri Lineaire) ye

A bɛ tali kɛ motɛri farikolo tilennen dɔrɔn de la

A bɛ bilasirali/kunnafoni wɛrɛw wajibiya

A donna i n’a fɔ a yɔrɔ koloma minɛnw kɔnɔ|

1

Tiɲɛniba ani jaabi caman

Ni masinw ka cikan bɔli ni fɛnɲɛnɛma sɛgɛsɛgɛli tɛ, jɔyɔrɔfalen tiɲɛni bɛ se ka se ± 1 μ m hakɛ ma, wa jaabi fangama teliya bɛ teliya siɲɛ 10-100 ka tɛmɛ laadala actuators kan, min bɛnnen don 2high-frequency ani high-precision walew ma (i n’a fɔ laser tigɛcogo ani chip detection).

Tɔnɔ min bɛ baara kɛ ka ɲɛ ani min ka dɔgɔ

Ni fɛnw jiginni yɔrɔw bɔra yen i n’a fɔ girinw ni juruw, fanga jiginni nafa bɛ se ka tɛmɛ 90% kan (a ka c’a la, laadala baarakɛminɛnw bɛ 60% -80%), wa masin tɛ sɛgɛn, o bɛ na ni ɲɛnamaya janya ye.

3

A bɛ wuli ka bɔ a nɔ na ani a bɛ teliya kosɛbɛ

O bεε bε Se ka Bɔ niwutɔn damadɔ la ka Se niwutɔn ba tan ni tan ma (a bɛ Sɔrɔ ni multi-stage stator splicing ye), wa a teliya bɛ Se ka Se 5-10m/s ma, o bɛ Tɛmɛ kosɛbɛ ni screw driven actuators (a ka c’a la).<1m/s).

4

Jatebɔ jɛlen

Wajibi tɛ ka yɔrɔ sɔrɔ motɛriw jiginni na ani fɛnw jiginni fɛɛrɛw kama, kɛrɛnkɛrɛnnenya la yɔrɔjan-ko minnu bɛ kɛ i n’a fɔ logistiki sɛgɛsɛgɛli sirabaw, o bɛ kɛ sababu ye ka layidu ta ka ɲɛ.

Ayi.

Ɛndisiri

Wajibiya jɔnjɔnw

Baarakɛcogo minnu bɛ Kɛ cogoya la

1

Semikɔndukiri ni mikroɛlektroniki dilanni

Nano nivo jɔyɔrɔfalen tiɲɛni, daminɛ jɔli teliya-teliya la, ani sigida min tɛ nɔgɔ{1}}.

Wafer minɛcogo n’a sɛgɛsɛgɛli : Litografu masinw ni ionw doncogo masinw na, wafer baarakɛyɔrɔ bɛ boli walasa ka jɔyɔrɔ tigitigi sɔrɔ mikromɛtɛrɛ walima hali nanomɛtiri hakɛ la, o bɛ a to puwɛnti sɛrɛkiliw cogoyaw bɛ bɔ kɛnɛ kan tigitigi.

Puce foroko : Soldering kun walima sonda station ka lamaga tilennen kɔlɔsi walasa ka baara kɛtaw dafa minnu ka bon-i n’a fɔ nɛgɛ sirili ani puwɛnti sɛgɛsɛgɛli.

2

Masina baarakɛminɛnw ni baarakɛminɛnw minnu bɛ baara kɛ ni u ye tigitigi

Jaabi fangamaba, mikromɛtɛrɛ hakɛ jɔyɔrɔ, ani tigɛ fanga bɔli sabatilen.

Teliyaba sɔgɔli/sɔgɔli masin : Aw bɛ baarakɛtabali boli k’a ɲɛsin a yɛrɛ ma walasa ka balo sinsinni sɔrɔ, ka aw yɛrɛ tanga laadala kurukuruw cili fili ma, ani ka masinw sanfɛla nɔgɔya ani u cogoya tiɲɛni ɲɛ (i n’a fɔ mɔbili baara).

Laser baarakɛminɛnw : a bɛ laser kunkolo lamagacogo sinsinni kɔlɔsi walasa ka teliya-teliya caman sɔrɔ ani ka se ka tigɛ, ka ja, walima ka taamasiyɛn kɛ fɛnw kan i n’a fɔ nɛgɛ ni gilasi.

3

Furakɛcogo minɛnw ani ɲɛnamaya dɔnniyaw

Yɛrɛyɛrɛ dɔgɔyali, sabatili ka bon, ani jiginni misɛnninw kɔlɔsili tigitigi.

Dɔgɔtɔrɔso ja lajɛminɛnw : CT ni magnetic resonance imaging (MRI) la, detektɛri walima dilan bɛ boli walasa ka sɛgɛsɛgɛli kɛcogo ɲuman kɛ walasa ka ja jɛlenw lajɛ.

Opereli robo : a bɛ opereli minɛnw ɲɛtaa sinsinni kɔlɔsi (i n’a fɔ laparoskopi minɛnw) walasa ka opereli kɛ milimɛtɛrɛ hakɛ la ani ka opereli joginda dɔgɔya.

Laboratowari otomatiki : Aw bɛ pipɛtiw, misali bilayɔrɔw, a ɲɔgɔnnaw boli walasa ka pipɛti ni sigida tigitigi sɔrɔ furaw sɛgɛsɛgɛli walima jeninida sinsinni na min bɛ se ka kɛ kosɛbɛ.

4

Nɛgɛso tɛmɛsira ni bolifɛnw bolicogo

Gɛlɛyaba, teliya-teliya baarakɛcogo, ani sɔgɔsɔgɔninjɛ jan sabatili.

Maglev tɛrɛn : A bɛ baara kɛ ni motɛri sinsinni kuran ye walasa ka tɛrɛn bila sira tilennen na sira kan, k’a sɔrɔ a mago tɛ wotoro nɛgɛso ɲɔgɔndan na, ka se ka teliya-teliya caman sɔrɔ (ka tɛmɛ kilomɛtɛrɛ 500 kan lɛrɛ kɔnɔ) ani mankan dɔgɔman-mankan.

Teliyaba la, fɛnw tacogo sira : Aeroport bagajiw tilatilali ni fɛnw ladonni na, a bɛ wotoroninw walima fɛnw ladonni cɛsirilanw boli walasa ka doni tali teliya-teliya ni tiɲɛni sɔrɔ (i n’a fɔ otomatiki sɛgɛsɛgɛli siratigɛw e-jagokɛyɔrɔw la).

5

Otomatiki ani Robo Industriw

Jaabi teliya, multi axis jɛ-ka-baara, segin-ka-bɔnyeba jɔyɔrɔfalen tiɲɛni.

Robo min bɛ sigi sanfɛ : SMT (Surface Mount Technology) ka fɛn dilanni siraw la, a bɛ nose modulu bila ka taa teliya la ani ka ɛntɛrinɛti yɔrɔw wuli ka ɲɛ PCB pankurunw kan.

Robo coordinate : 3C baarakɛyɔrɔ la (telefɔni selilɛri, ɔridinatɛri dilanni), a bɛ fɛnw minɛcogo, u lajɛcogo walima u sɛgɛsɛgɛli dɔn, wa a bɛ jɛ ka baara kɛ ni yeli siraw ye walasa ka baara kɛtaw dafa minnu ka bon-.

6

Aerospace ani Lafasali

Lamini bɛrɛbɛnni dantɛmɛnen, dannayaba, servo control kɔrɔlen-precision.

Fiɲɛbɔlan sɛgɛsɛgɛli : Aw bɛ awiyɔn modɛli boli walasa ka lamaga-lamagali sinsinni kɛ fiɲɛbɔlan kɔnɔ, ka fiɲɛbɔlan cogoyaw ladege teliya danfaralenw na.

Rada ni sateliti antɛni: Antɛni balo sɔrɔyɔrɔ jiginni tilennen kɔlɔsi walasa ka se ka yeelen jiracogo tigitigi sɔrɔ ani ka tugu a nɔfɛ.

Marifaw sigicogo: Marifa minnu bɛ kurun kɔnɔ walima minnu bɛ mobili kɔnɔ, a bɛ marifakisɛ walima marifakisɛw wulicogo/bamanankan baara walasa ka laɲini teliya sɔrɔ.

7

Fanga ni tiɲɛni sɛgɛsɛgɛli kura

Interference dɔgɔman, resolution ka bon, ani baarakɛcogo sabatilen min bɛ to senna.

Tile pannew dilanni : Laser tigɛlan tigɛlan kunkolo boli walasa ka grid layiniw ja minnu ka bon-silisiyɔmu wafer kan, o bɛ batiri jiginni nafa bonya. Sumanikɛlan tigitigiw : Sumanikɛlan minnu bɛ ɲɔgɔn sɔrɔ ani laser interferometers kɔnɔ, bolifɛn sonda bɛ se ka baarakɛminɛnw hakɛw dɔn ni ultra precision ye (ni tiɲɛni bɛ se 0,1 μ m ma).
